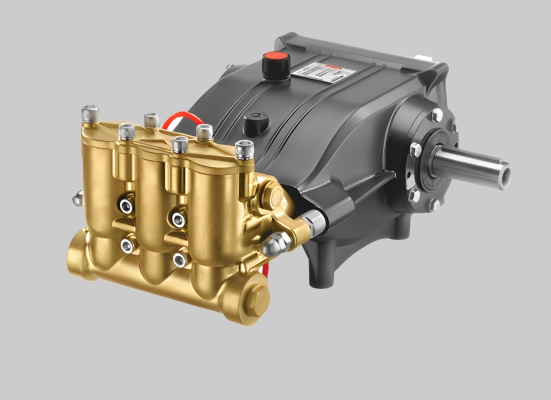

PX / MPX SERIES

PX & MPX pumps can operate at a maximum pressure of 500 bar and
with water temperatures up to 65°C (149F). This pump is an ideal choice for fitting on portable washing systems and used for industrial cleaning, as well as on medium sized vehicles for municipal cleaning
services in the version operating at 350 bar and also used for industrial
cleaning where the work is less intense and the compact build and low
cost of ownership are major factors.

TECHNICAL CHARACTERISTICS
WeightKgPX 19.6 & MPX 34.5
Oil CapacityLt.1.2 & 2.3
InletBSP F1/2" & 3/4"
OutletBSP F3/8" & 1/2"
OperatingTemperature65° C
Shaft SizeDiameter⌀ PX 24 mm, MPX 30 mm

MODEL SELECTION CHART

PUMP MODELFLOW RATE (LPM)MAX. PRESSURE (BAR)RPMREQUIRED POWER
(MOTOR HP)
PX 1735IR17 LPM350 BAR1450 RPM15.2 HP
PX 2135IR21 LPM350 BAR1450 RPM19.5 HP
PX 1550IR15 LPM500 BAR1450 RPM19.4 HP
PX 2150IR21 LPM500 BAR1450 RPM27.6 HP
MPX 3050R30 LPM500 BAR1450 RPM38.7 HP
